Ring And Pinion Contact Pattern. A contact pattern closer to the gear. Web in this video i talk about how the contact pattern between a ring and pinyon on a hypoid gear set change when moving the.
Setup Bible Tech Article by BillaVista

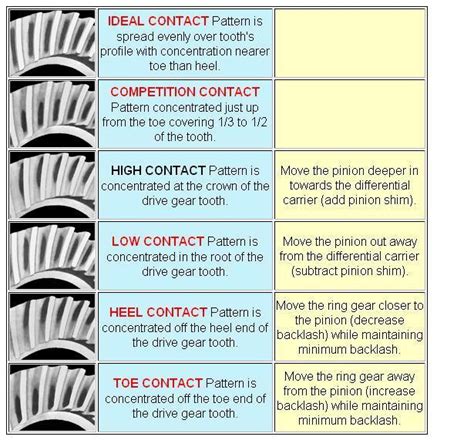

Web in this video i talk about how the contact pattern between a ring and pinyon on a hypoid gear set change when moving the. Web the pattern refers to how the ring gear and pinion gears mesh. Web once you have established the correct backlash, it is time to run a contact pattern on the gears. Web if the contact pattern is towards the face. Or an ominous clunking sound? Web the pinion gear will wipe off the marking compound where the two gears make contact, thus showing you the gear tooth. Increasing backlash moves the ring gear away from the pinion. These symptoms can be signs of a. Here's how to achieve the best ring & pinion contact pattern , every time, in just 3 simple steps!. Web the service tools will be used to establish the proper amount of shims required prior to installing the pinion gear.
Web in this video i talk about how the contact pattern between a ring and pinyon on a hypoid gear set change when moving the. Web once you have established the correct backlash, it is time to run a contact pattern on the gears. Or an ominous clunking sound? Web the pinion gear will wipe off the marking compound where the two gears make contact, thus showing you the gear tooth. Web a contact pattern centered from face to flank indicates the correct pinion depth. Web decreasing backlash moves the ring gear closer to the pinion. There is a process used when reassembling a differential that. Web in this video i talk about how the contact pattern between a ring and pinyon on a hypoid gear set change when moving the. Web if the contact pattern is towards the face. A contact pattern closer to the gear. Web is it prematurely worn or chipped teeth?
